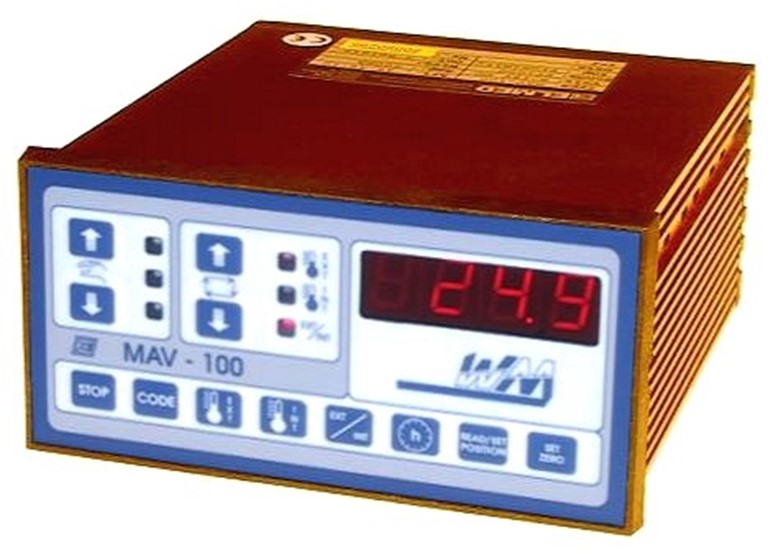

The microprocessor machine is used for the measurement and the regulation of the machines for ice tracks. By positioning sensors the ice tracks can be precisely cleaned. All the parameters can be stated by a command panel. On a 4 figures display, values such as surface temperature, surrounding temperature, edge regulation, statement on zero and hours of working. All the data are transferred on a memory (EEPROM).
Technical aspects
- Feeding: 9-18V DC
- Power absorption: 4 VA
- Relay1 output: 1 closing 8Amp.
- Relay2 output: 1 closing 8Amp.
- Relay3 output: 1 closing 8Amp.
- Digital inputs: 5 by optocouplers 20mA
- Buzzer: internal or external 12V DC
- Proximity sensor: NPN 12-24V Omron
- Temperature probe 1: PT1000 for ice temperature
- Temperature probe 2: PT1000 for surrounding temperature
- Configuration memory: 2Kbyte
- Work temperature: -30 - +80°C
- Work temperature: screw terminals to 1,5mm²
- Machine dimensions: 144x145x72mm
- Assembly dimensions: 138x66mm
- EU rule: IEC1000-4-2 IEC1000-4-4 EN55022
CODE: 46-46-10
