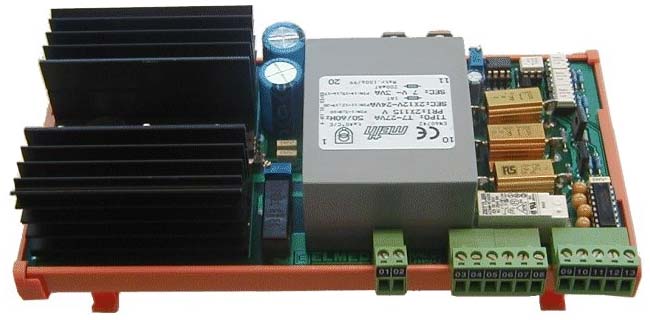

The RAL-01 unit has been conceived to manage communication between PC Software and REM-01 forms, used to manage valves destined to flowerbeds watering. By a serial RS232 interface it is possible to manage the data regarding turn off/on of the connected REM-01 forms. THE RAL-01 unit is easy to assemble on a DIN guide. The application field is agriculture as command point for artificial watering.
Technical characteristics
- Tension230V AC
- Serial interface: RS232
- Transmission speed: 9.600 Baud
- Form connection: 70 REM-01 units
- Work temperature: -20 bis +80°C
- Electrical connection: extractable screw terminals 1,5mm²
- Measures: 213x108x80 LxDxH
- Assembly: DIN NS32 or NS35 guide
- EU-norm: certificate
CODE: 48-48-95
