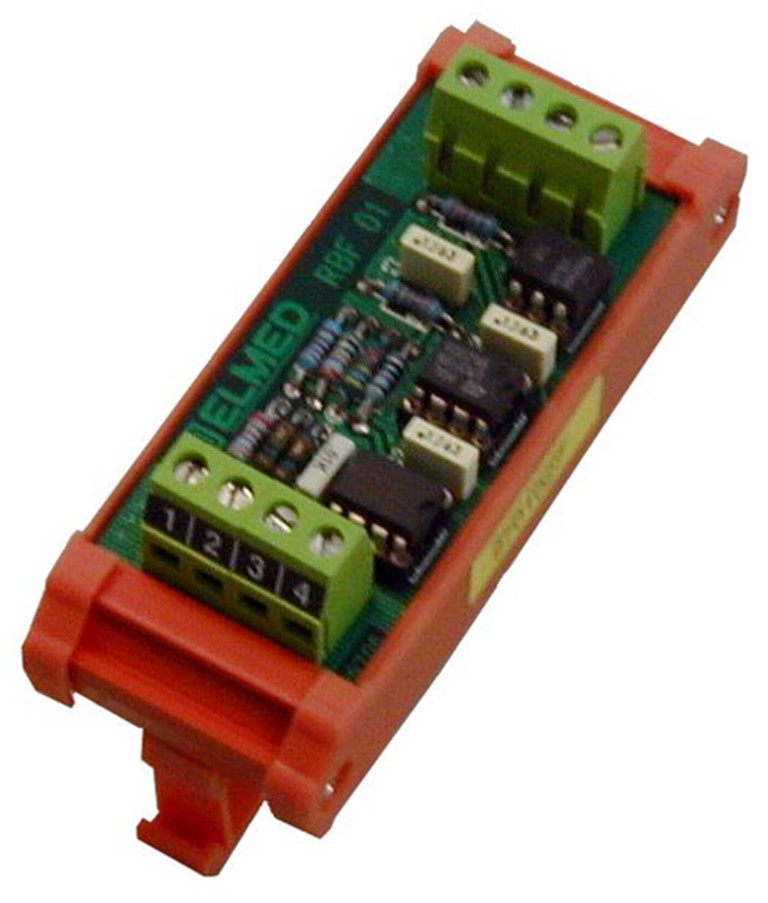

The RBF-01 unit together with the BNF-01 sensor is used to measure and control frost. By its two analogical outputs the wet and dry states can be processed. The unit is assembled on a guide
But it can be assembled on a “u” shaped profile. The application field is in agriculture against the peronospera infection.
Technicals characteristics
- Feeding: 12V DC
- Probe: AC 12V
- Output signal: 0-5V
- Connection: screw terminals 1,5mm
- Dimensions: 32x86x96 mm LxDxH
- Assembly: DIN NS32 or NS35 guide
- EU norm: certificate
CODE: 43-43-166
