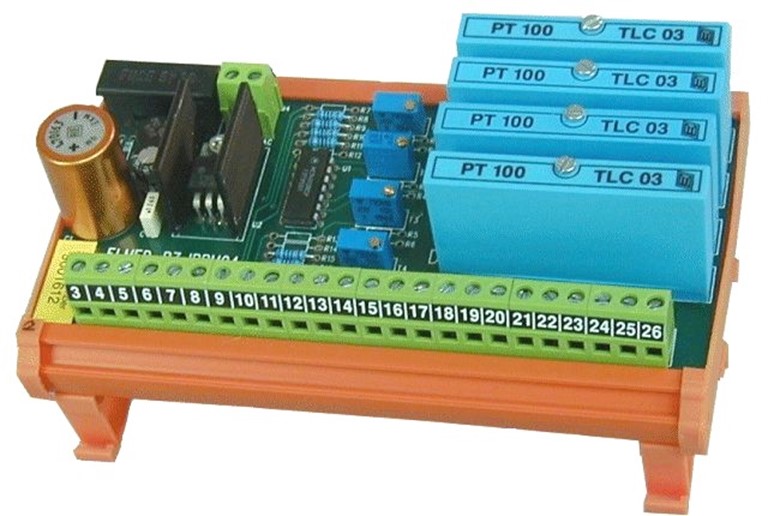

The IBRM04 form permits the conversion of 2 temperature values noted by PT100 probes, in as many tension values. The signal response curve is linearized by hybrid forms allowing a very simple interfacing. The form is supplied in different temperature ranges and to these ones the same tension values correspond so that they are interchangeable. To feed the form only one feeding is necessary even if it is not stabilized . The form is located in a plastic container to be assembled on DIN guide. The typical applications of this form are industrial and civil field where a precise temperature measurement and the relative linear transformation in electrical quantity are required.
Technical aspects
- Feeding tension: 18-36V AC
- Current absorption: 80 mA
- Connectable sonds: 4 x PT100
- Sond connection PT100: 2, 3 or 4 wire
- Temperature range: -5°C ÷ +5°C
- Output signal: -5 ÷ + 5 V
- Conversion form: TLC03 on support
- Working temperature: -20 ÷ +80°C
- Connections: screw terminals to 1,5mm²
- Assembly: DIN NS32 or NS35 guide
- Dimensions LxDxH: 139x87x69mm
|
