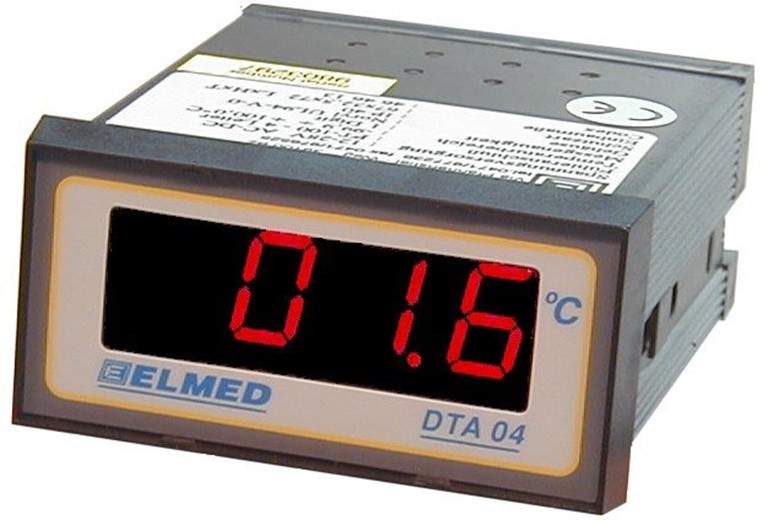

The DTA04 temperature displayer allows a high precision temperature measurement. By a PT1000 drill the displayer transforms the resistance value in a tension proportional to the temperature. The characteristic measurement transformation curve is linearized. The amplifier is realized by a hybrid technology. A DC convertor allows to use a very wide feeling tension. A proportional tension is available in output. This instrument can be used when a very precise temperature measurement is necessary.
Technical characteristics
- Work tension: 10 ÷ 40V DC 12 ÷ 28V AC
- Current absorption: at 24 V 300mA
- Frontal part: Red filter with Polycarbonate
- Display: red 13mm high brightness 3 ½ digit
- Measurement field: -99,9 ÷ +100,0°C
- Characteristic curve: linear
- Measurement precision: 1 Digit
- Temperature input: PT100 DIN43760 4 wires
- Output tension: -100 ÷ +100°C -5V ÷ +5V DC
- Work temperature: -20 ÷ +80°C
- PVC container: Noryl UL94-V-0 selfextinguishing
- Protection: IP40
- Connection: extractable screw terminals to 1,5mm²
- External dimension: 72x36x81mm LxHxD
- Internal dimensions: 67x32,5x72mm LxHxD
- Assembly: by panel
- Weight: 115 grams
CODE: 46-46-13
