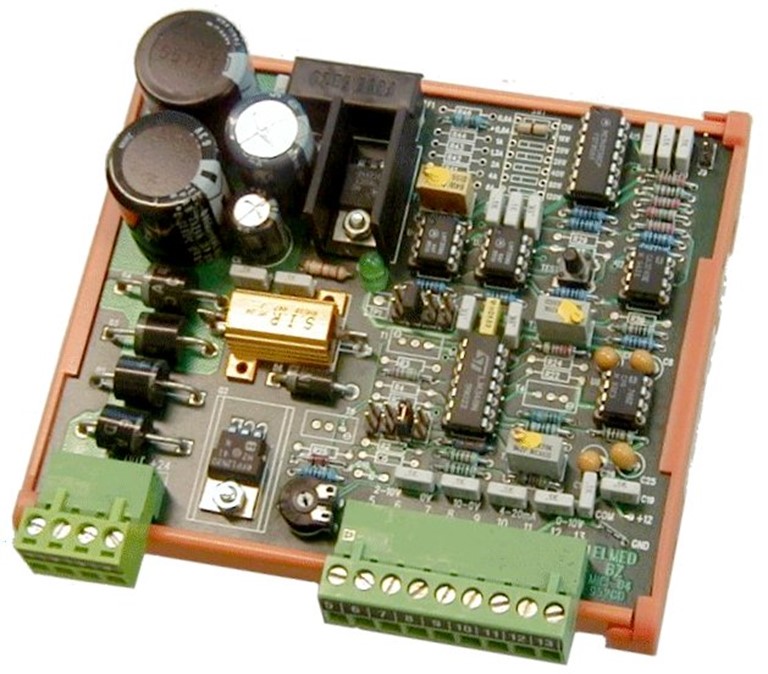

The MICI 04 form allows the complete control of the hydraulic regulator valves with solenoid working at 24 DC. The valve position control is realized by varying, by PWM technology, the feeding tension of the same valves. To control the output signal different kind of internally limited signal inputs are available. Thanks to a DIP-SWITCH it also possible to programme the valve solenoid power. The form feeding is 24 V AC-DC. The unit is located in a container with links for DIN guides. The typical applications of this form are the mixer valves position control in heating and conditioning systems and in the fluids treating.
Technical characteristics
- Work tension: 24 V AC
- Output signal: programmable 0 ÷ 10V or 4 ÷ 20mA
- Output power: programmable 13W ÷ 80W
- Regulation type: PWM 1 KHZ
- Connections: screw terminal 1,5mm²
- Work temperature: -20 ÷ 80°C
- External fuse: 6 Amp. for E-Valve
- Assembly: NS32 or NS35 guide
- Dimensions LxHxD: 123 x 104 x 66.5mm
Programmable:
Input signal 2 ÷ 10V: Electro-Valve signal 0 ÷ 24V
Input signal 10 ÷ 0V: Electro-Valve signal 0 ÷ 24V
Input signal 4 ÷ 20mA: Electro-Valve signal 0 ÷ 24V
Input signal 0 ÷ 10V: Electro-Valve signal 0 ÷ 24V
Input signal 2 ÷ 10V: Electro-Valve signal 24 ÷ 0V
Input signal: 13W,16W, 20W, 26W, 40W, 80W
CODE: 43-43-66
