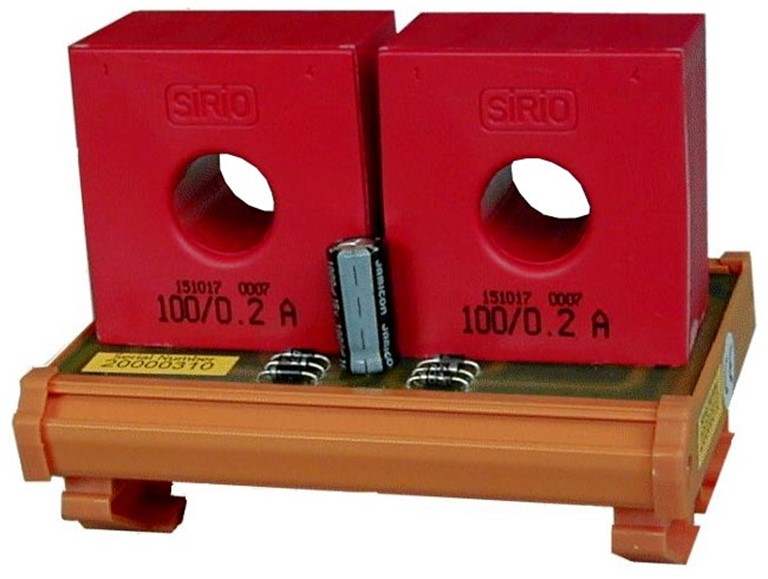

The IUC10 model allows the measurement of the alternating current by changing it in a proportional tension signal. To a current measured in a field between 0 - 100 A an output tension of 5V DC corresponds. As the measurement method is inductive there is no electric connection between current to measure and corresponding signal. On the form there is a trimmer for the compensation of the measured signal. The unit is located in a plastic assembly container by DIN guide with possibility of quick release. The typical applications of the IUC10 form are the current measurement to test the electric motors working, the systems or instruments absorption measurement and all those application where the alternated current measurement is necessary.
Technical characteristics
- Measured alternating current: 100Amp.
- Output tension: 5 V DC
- Maximum output current: 5mA max. limited
- Measurement tolerance: 0.8%
- Temperature field: -20 ÷ 80°C
- Connections: screw terminals 1,5mm²
- Assembly: NS35 or NS32 guide
- Dimensions LxDxH: 142 x 86.5 x 90mm
CODE: 48-48-02
