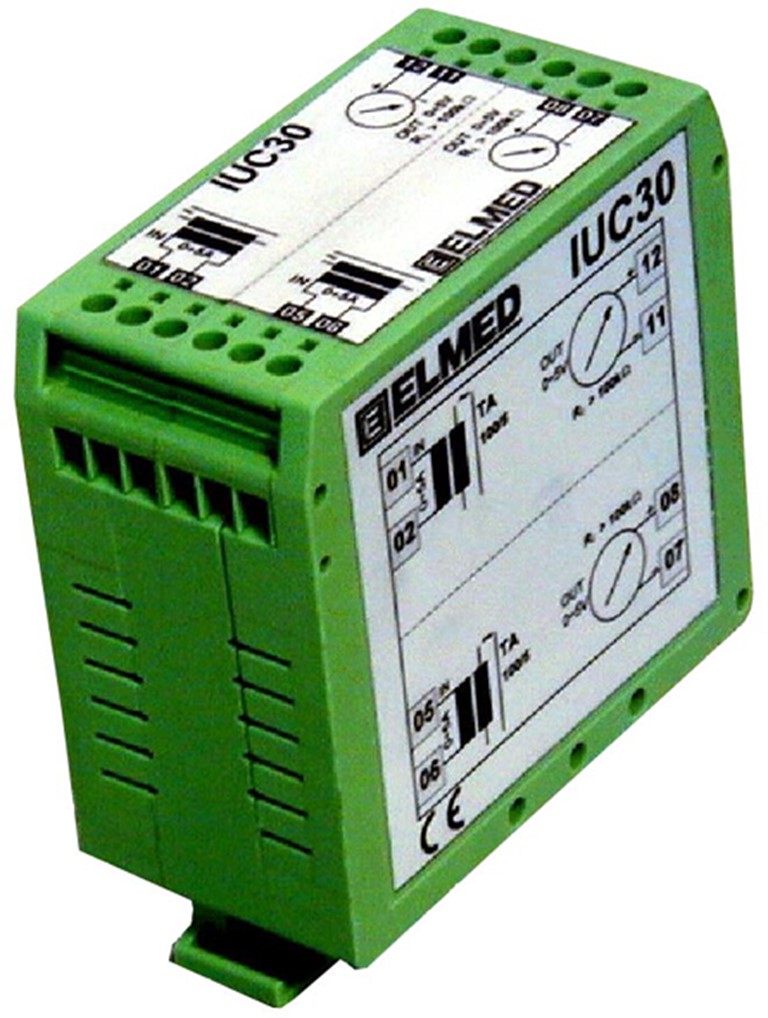

The IUC-30 unit allows to measure the input current of 2 TA. The unit changes the input current of 0-5Amp. in an output tensio of 0-5V DC. The output tension is linear and galvanically separated. There is no need of auxiliary energy to get the transformation. The application field is in measurement and regulation technology.
Technical characteristics
- Input current: 2x TA_ _ /5Amp.
- Output tension: 2x 0-5V DC
- Output resistance: > 100 K Ohm
- Output tension: linear
- Temperature range: -20 bis +80°C
- Connection: screw terminals to 1,5mm²
- Dimensions: 40x80x80 LxDxH
- Assembly: DIN NS32 or NS35 guide
- EU-Rule: certified
CODE: 48-48-109
