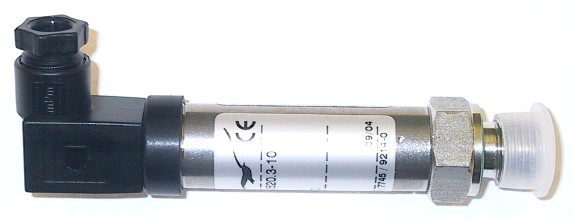

The piezoceramic pressure sensor adapt to the absolute pressare measurement. si adeguano alla misurazione della pressione assoluta. The measurement is realized inside a strong container so that the sensor can be used in different application fields and it needs no maintenance. By the measurement piezoresistive cell a low hystersis and a long high stability can be obtained.
Technical characteristics
- Type PA21
- Absolute pressure: 0-30 bar
- Connection: External thread 1/4 inch
- Output: 4-20mA
- Material: steel
- Lenght: 90 mm
- Diameter: 17 mm
- Cable connection: 2x0,5mm
- Cable lenght: 1 mt.
CODE: 34-34-13
