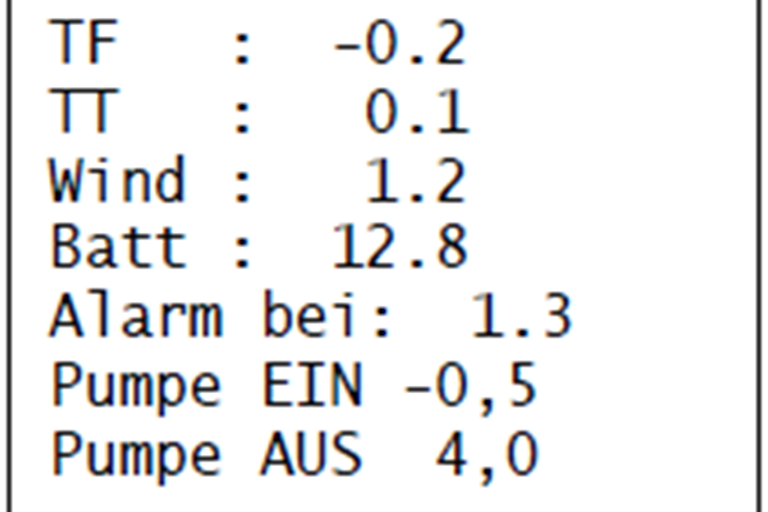

- TF: wet temperature in degrees celsius (°C)
- TT: dry temperature in degrees celsius (°C)
- Wind: wind speed in meters per second (m/s)
- Batt: batterie tension in volts (V)
- Alarm bei: alarm threshold in degrees celsius (°C)
- Pumpe ON: if TF reaches or goes below the value
- Pumpe OFF: if TF exceeds the value

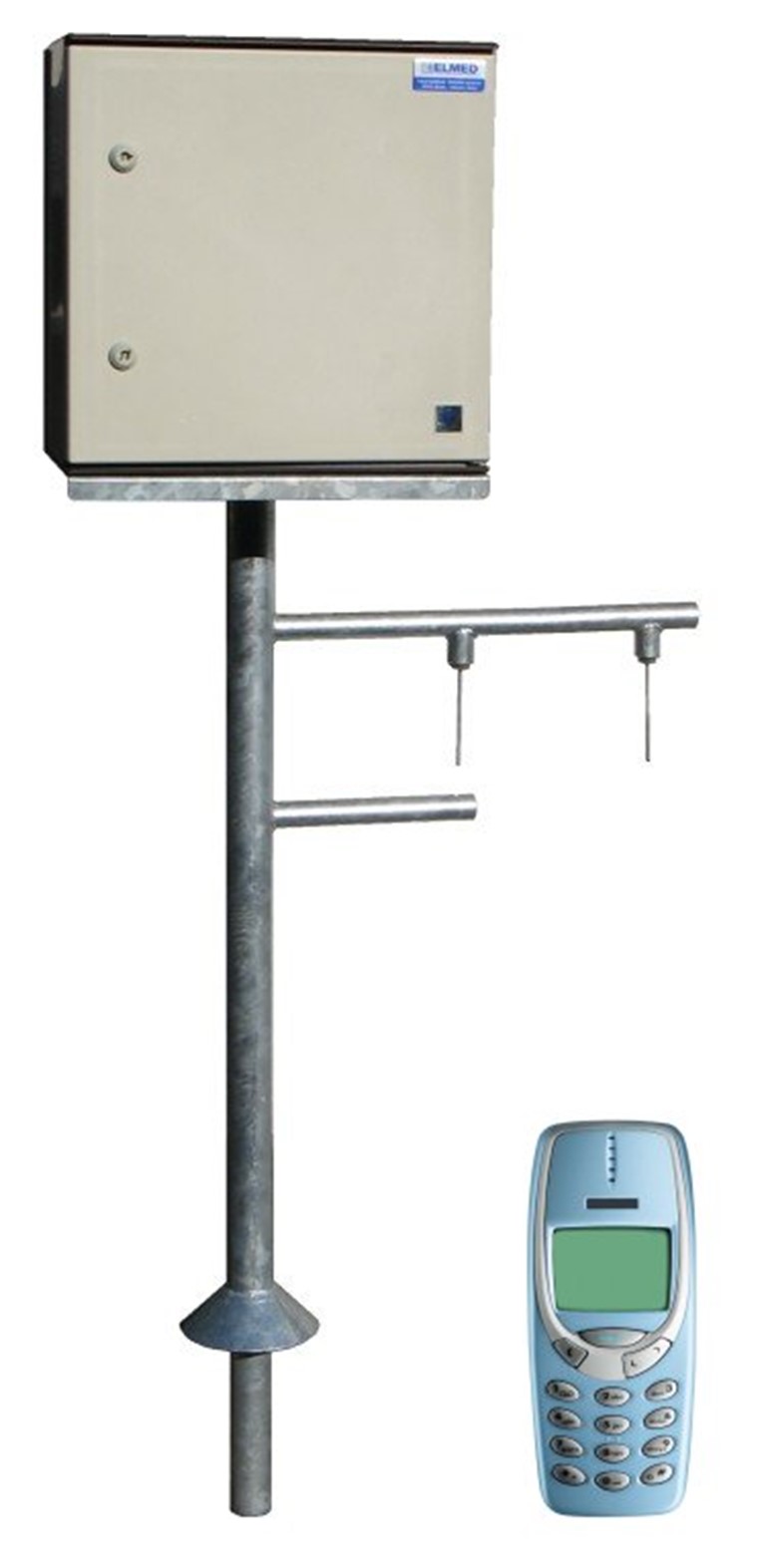

The miniWeather station RES03 is used in agriculture as survey system during time and it can advice in case of frost. Different sensors measure the dry and wet temperature and the wind. The data are collected and processed by a command form. The visualisation of the measured data and the frost warnings are transferred by the GSM form directly on a mobile phone. In case of frost, the weather station sends a warning sms and calls the inserted phone numbers. It can be inserted multiple phone numbers of multiple users. The advice level is programmed by the mobile phone, too. The station contains a lead accumulator feeling it with a 12VDC tension. The 40 Ah capacity is enough to keep in service the station for about one month. By adding a solar panel it is possible to get a complete autonomy.
Technical data
- Zinced steel station
- Electric form: Glass fiber 400x400x200 mm
- Temperature drill: PT100 category 1/3 DIN B+
- Wind drill (optional): with 0,4 m/s of starting speed
- Solar panel (optional): SM45/30 640x530x20 45W 2,9A
- Command form: RES 03 with microcontroller
- Data transmission: GSM form integrated
- Tension feeding: lead accumulator 12V 40Ah
- Measure: height 1,3m , 3m (with solar panel)
