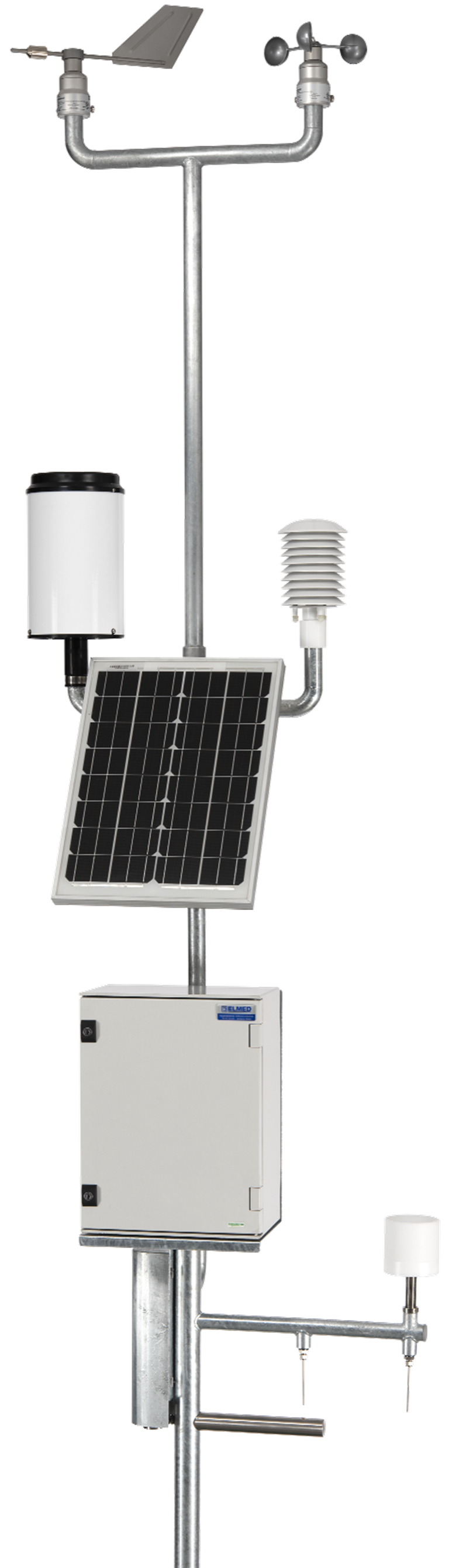

The MiniMeteo weather station is vitally important for recording weather data in agriculture.
Using several sensors such as for air temperature, relative humidity, leaf wetness, precipitation, and dry and wet temperatures, measurements can be precisely collected by the RES05 data logger and transmitted to the cloud, where they can then be retrieved with an app or web application for graphical display or scab evaluation. The frost warning can either be sent via SMS and an alarm call to a smart phone (weather station with GPRS version) or with the help of the app in which an alarm value can be set not only for the wet temperature, but also for all other measurements. The weather station is powered via an integrated, hermetically sealed lead-acid rechargeable battery with a capacity of 12 Ah. It is charged via a photovoltaic module.
Technical details:
- Station and base unit made from hot-dip galvanised steel
- Switch cabinet: plastic 430 x 330 x 200 mm
- Probe for air temperature and relative humidity with ribbed protector 2 m tall
- 2 sensors for wet and dry temperatures: PT100, class AA
- Water filling system made of stainless steel for the wet temperature
- Rain sensor: with a resolution of 0.1 mm
- Wet leaf sensor measurement range: 0 – 100% moisture
- Cup anemometer: 0 – 40 m/s at a height of 3 m
- Windrichtungssensor: 0-360° Genauigkeit ±2,5°
- Photovoltaic module: 20 W
- Data transmission: with integrated GPRS module (SIM card required) or with a LoRa module (also requires a TTN gateway within range of the station
- Web application: MeteoWeb
- Optional: SmartMeteo app
- Power supply: hermetically sealed lead-acid rechargeable battery 12 V 12 Ah
- Serial connection for BFS40-S soil moisture probe
- Dimensions: h 3 m, base unit: 60 c
